Folded Baffled Box Sources

Information guide

Parts A and C are available in Al2O3 coated. Please ask us.

Dimensions about the 4 available capacities:

P/N BL (mm) W (mm) H (mm) OL (mm) P (mm) Nbre trous Vol.



SB-7 44.5 25.4 19 88.9

1.52

60 trous

4 x 15

21 cc
SB-8 44.5 38.1 25.4 88.9

1.52

70 trous

5 x 15

43 cc
SB-9 76.2 35 19 120.7

1.52

115 trous

5 x 23

50 cc
SB-10 69.9 50.8 31.8 101.6

3.05

65 trous

5 x 13

112 cc

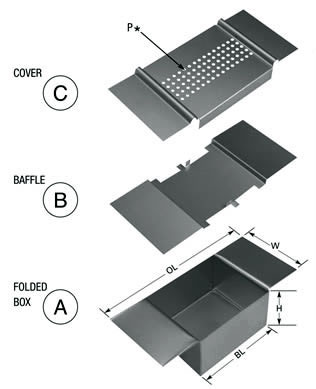

Materials for each part:

  Standard Al2O3 coated
C Mo or Ta 127 µ Mo or Ta 127 µ or 254 µ
B Mo or Ta 127 µ normally not used
A Mo or Ta 127 µ or 254 µ  Mo or Ta 254 µ
