CF Screws

All screws are in Stainless steel.

All measurements are in millimetres

Nut bolt washer set

Silver plated bolts are available on request.

P/N DN Dia L Packaging Quantity
NBW420 16 M4 20 25 Add
NBW635 40 M6 35 25 Add
NBW845 63 M8 45 25 Add
NBW850 100 M8 50 25 Add
NBW860 150 M8 60 25 Add
NBW860 200 M8 60 25 Add
NBW1065 250 M10 65 35 Add

Please, enter a numeric value

Nut bolt washer set for double sided CF flange

Silver plated bolts are available on request.

P/N DN Diameter L Packaging Quantity
NBW435 16 M4 35 25 Add
NBW650 40 M6 50 25 Add
NBW860 63 M8 60 25 Add
NBW870 100 M8 70 25 Add
NBW880 150 M8 80 25 Add
NBW890 200 M8 90 25 Add
NBW1090 250 M10 90 35 Add

Please, enter a numeric value

Nut bolt washer set for tapped CF flange

Silver plated bolts are available on request.

P/N DN Diameter L Packaging Quantity
BW416 16 M4 16 25 Add
BW625 40 M6 25 25 Add
BW830 63 M8 30 25 Add
BW835 100 M8 35 25 Add
BW835 150 M8 35 25 Add
BW845 200 M8 45 25 Add
BW1050 250 M10 50 35 Add

Please, enter a numeric value

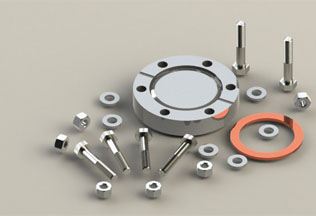

Blank off kit of parts

Blank off kit of parts





  Consists of : 1 x blank, 1 x gasket and appropriate quantity of nuts, bolts and wahers for blanking off ports

P/N DN Quantity
F16-BLANKOFF 16 Add
F35-BLANKOFF 40 Add
F63-BLANKOFF 63 Add
F100-BLANKOFF 100 Add
F150-BLANKOFF 150 Add
F200-BLANKOFF 200 Add
F250-BLANKOFF 250 Add
F272-BLANKOFF 250 Add

Please, enter a numeric value

Plate nuts

  • Used where spanner access to back of flange may be impaired
  • Material: Stainless steel
P/N DN A B C Diameter Packaging Quantity
PN16 16 20 13 7 M4 25 Add
PN35 40 41 29 11 M6 25 Add
PN63 63 51 35 12 M8 25 Add
PN100 100 44 25 12 M8 25 Add
PN150 150 44 28 12 M8 25 Add

Please, enter a numeric value

Horse shoe plate nuts

  • Used to convert a plain flange into a tapped equivalent
  • Material: Stainless steel
P/N DN D1 D2 D3 Quantity
PN16HS 16 34 20 M4 Add
PN35HS 40 70 43 M6 Add
PN63HS 63 114 65 M8 Add
PN100HS 100 152 103 M8 Add
PN150HS 150 203 154 M8 Add

Please, enter a numeric value

Download documentation

Can not find the desired product? Contact us
