Baffled box sources for SiO, ZnS

The “Baffled Box” Silicon monoxide source, SiO source, has proven to be an extremely successful method of depositing Silicon Monoxide. Source material is positioned in the boat within separate cavities, when heated it follows an indirect path through a series of baffles and then out of the exhaust chimney.
The substrate cannot see the bulk material at any time. This essentially eliminates any chance of spitting and streaming which causes pinhole type defects. Many of the sources shown are available with up, down or horizontal exhaust ports.

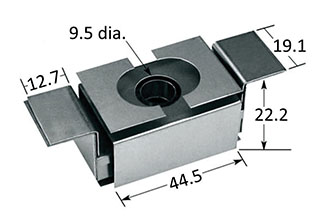

SM-8 Source

SM-8 Source

3.5 grams

P/N V A W Quantity
SM-8 1.08 255 275 1200°C Add

Please, enter a numeric value

SM-9 Source

Same dimensions as SM-8.

The internal baffles are reversed allowing the source to be mounted in an inverted position, exhaust port pointing down.

P/N V A W Quantity
SM-9 1.00 242 242 1200°C Add

Please, enter a numeric value

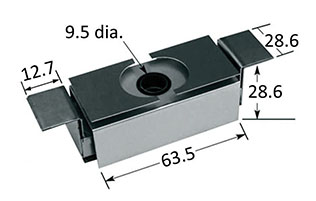

SM-10 Source

SM-10 Source

5 grams

P/N V A W Quantity
SM-10 1.25 226 282 1200°C Add

Please, enter a numeric value

SM-11 Source

Same dimensions as SM-10.

The internal baffles are reversed allowing the source to be mounted in an inverted position, exhaust port pointing down.

P/N V A W Quantity
SM-11 1.26 236 297 1200°C Add

Please, enter a numeric value

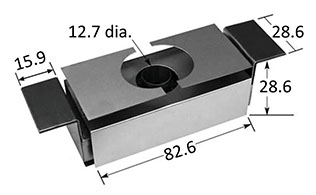

SM-12 Source

SM-12 Source

10 grams



P/N V A W Quantity
SM-12 1.36 283 385 1200°C Add

Please, enter a numeric value

SM-13 Source

Same dimensions as SM-12.

The internal baffles are reversed allowing the source to be mounted in an inverted position, exhaust port pointing down.

P/N V A W Quantity
SM-13 1.60 318 509 1200°C Add

Please, enter a numeric value

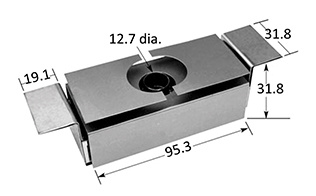

SM-14 Source

SM-14 Source

20 grams

P/N V A W Quantity
SM-14 1.66 340 564 1200°C Add

Please, enter a numeric value

SM-15 Source

Same dimensions as SM-14.

The internal baffles are reversed allowing the source to be mounted in an inverted position, exhaust port pointing down.

P/N V A W Quantity
SM-15 1.70 349 593 1200°C Add

Please, enter a numeric value

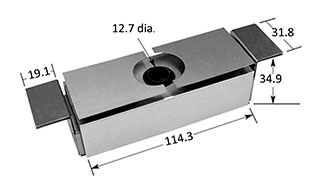

SM-16 Source

SM-16 Source

40 grams

P/N V A W Quantity
SM-16 2.06 357 735 1200°C Add

Please, enter a numeric value

SM-17 Source

Same dimensions as SM-16.

The internal baffles are reversed allowing the source to be mounted in an inverted position, exhaust port pointing down.

P/N V A W Quantity
SM-17 1.86 327 608 1200°C Add

Please, enter a numeric value

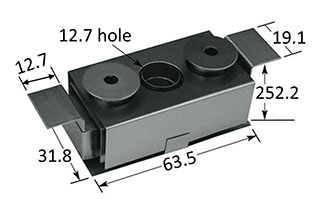

SO-10 Source

SO-10 Source

6.5 grams

P/N V A W Quantity
SO-10 1.40 257 360 1200°C Add

Please, enter a numeric value

SO-11 Source

Same dimensions as SO-10.

Exhaust port is at bottom of box, pointing down.

P/N V A W Quantity
SO-11 1.40 256 358 1200°C Add

Please, enter a numeric value

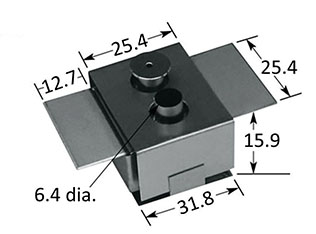

SO-20 Source

SO-20 Source

1.5 grams

P/N V A W Quantity
SO-20 0.86 333 286 1200°C Add

Please, enter a numeric value

SO-21 Source

Same dimensions as SO-20.

Exhaust port is at bottom of box, pointing down.

P/N V A W Quantity
SO-21 0.91 328 298 1200°C Add

Please, enter a numeric value

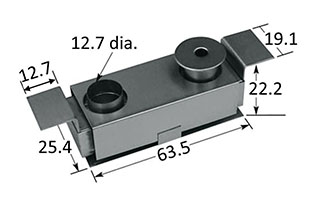

SO-22 Source

SO-22 Source

6.5 grams

P/N V A W Quantity
SO-22 1.34 246 330 1200°C Add

Please, enter a numeric value

SO-23 Source

Same dimensions as SO-22.

Exhaust port is at bottom of box, pointing down.

P/N V A W Quantity
SO-23 1.31 236 309 1200°C Add

Please, enter a numeric value

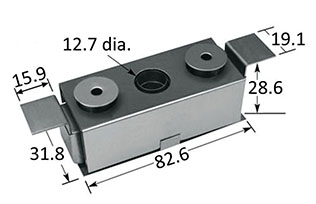

SO-24 Source

SO-24 Source
13 grams
P/N V A W Quantity
SO-24 1.67 264 441 1200°C Add

Please, enter a numeric value

SO-25 Source

Same dimensions as SO-24.

Exhaust port is at bottom of box, pointing down.

P/N V A W Quantity
SO-25 1.58 272 430 1200°C Add

Please, enter a numeric value

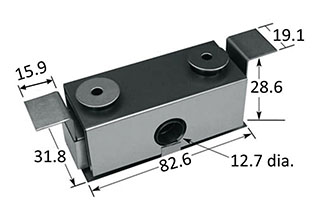

SO-26 Source

SO-26 Source

13 grams

P/N V A W Quantity
SO-26 1.62 271 439 1200°C Add

Please, enter a numeric value

SO-32/34/36/38 Sources

SO-32/34/36/38 Sources
P/N LH (mm) BL (mm) W (mm) H (mm) OL (mm) LW (mm) Vol.



Dimensions

SO-32 31.75 73.1 45.7 45.5 101.6 25.4 20 cc
SO-34 50.8 73.1 45.7 61.5 101.6 25.4 40 cc
SO-36 50.8 73.1 58.4 61.5 101.6 38.1 60 cc
SO-38 76.2 73.1 58.4 86.9 101.6 38.1 90 cc

Material of the parts:

  • Heater and Fill Hole Covers : Ta
  • Lower heat shields : Nb
  • Upper heat shields : Mo
P/N V A W Quantity
SO-32 1.23 217 267 1200°C Add
SO-34 1.27 289 367 1200°C Add
SO-36 1.30 373 485 1200°C Add
SO-38 1.43 447 640 1200°C Add

Please, enter a numeric value

SO-100 to SO-2000 Sources

SO-100 to SO-2000 Sources
P/N SL (mm) W (mm) SD (mm) LW (mm) OL (mm) Ø (mm) Vol

Dimensions



SO-100 149.2 82.55 50.8 19 193.7 19 100 cc
SO-150 149.2 88.9 57.1 19 193.7 19 150 cc
SO-200 149.2 95.25 63.5 38.1 206.4 19 200 cc
SO-250 149.2 107.95 76.2 57.1 184.1 19 250 cc
SO-300 149.2 107.95 76.2 25.4 206.4 19 300 cc
SO-500 219.1 107.95 76.2 57.1 279.4 19 500 cc
SO-800 219 152.4 121.9 50.8 257.8 25.4 800 cc
SO-1000 200 152.4 121.9 50.8 279.4 25.4 1000 cc
SO-1500 209.5 161.92 131.8 50.8 304.8 25.4 1500 cc
SO-2000 212.7 182.58 150.8 63.5 292.1 25.4 2000 cc



P/N V A W Quantity
SO-100 3.7 540 1998 1200°C Add
SO-150 3.9 620 2418 1200°C Add
SO-200 4.1 860 3526 1200°C Add
SO-250 4.15 955 3963 1200°C Add
SO-300 4.2 1075 4515 1200°C Add
SO-500 4.3 1135 4881 1200°C Add
SO-800 4.4 1210 5324 1200°C Add
SO-1000 4.5 1440 6480 1200°C Add
SO-1500 4.6 1580 7268 1200°C Add
SO-2000 4.8 1620 7776 1200°C Add

Please, enter a numeric value
