Heat Shielded Crucible Heaters

Shielded crucible heaters provide uniform heating to the installed crucible and allow very high rates as well as high temperatures, up to 1800°C, to be achieved. Due to the rigid construction, heater and crucible life is extended. The thermal shields protect your components by reducing the radiant heat that you system is exposed to.

Material: Tantalum Ta

Custom sizes are available on request.

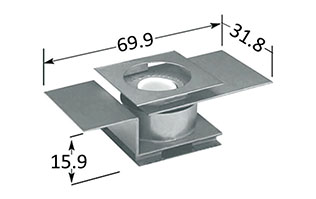

CH-1 Heaters

CH-1 Heaters

Use with C1 and C9 crucibles (OD 1/2" x H 1/2")

P/N V A W Quantity
CH-1 1.34 273 366 1600°C Add

Please, enter a numeric value

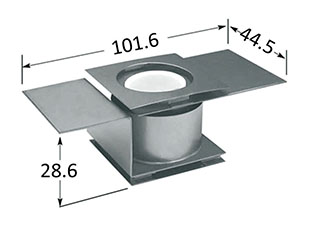

CH-5 Heaters

CH-5 Heaters

Use with C5 crucible (OD 1" x H 1")

P/N V A W Quantity
CH-5 1.79 346 619 1600°C Add

Please, enter a numeric value

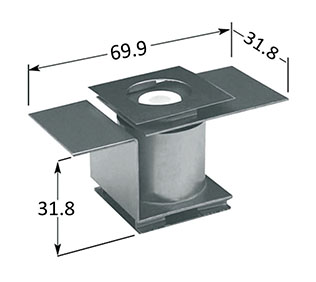

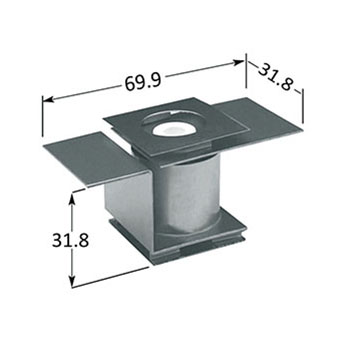

CH-7 Heaters

CH-7 Heaters

Use with C7 crucible  (OD 3/8" x H 1")

Suscepteur type

P/N V A W Quantity
CH-7 1.47 187 275 1600°C Add

Please, enter a numeric value

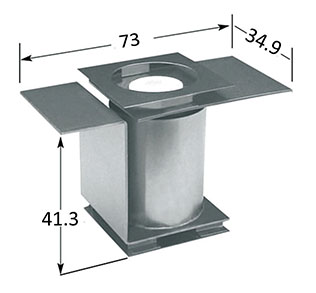

CH-8 Heaters

CH-8 Heaters

Use with C8 crucible  (OD 1/2" x H 1.5")

Suscepteur type

P/N V A W Quantity
CH-8 1.73 199 344 1600°C Add

Please, enter a numeric value

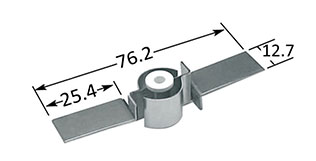

CH-9 Heaters

CH-9 Heaters

Use with C10 crucible  (OD 1/4" x H 1/2")

Horizontal leads

Suscepteur type

P/N V A W Quantity
CH-9 1.93 191 369 1600°C Add

Please, enter a numeric value

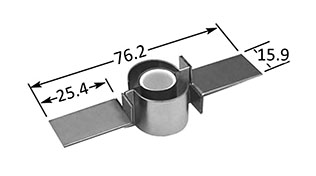

CH-10 Heaters

CH-10 Heaters

Use with C1 and C9 crucibles (OD 1/2" x H 1/2")

Horizontal leads

P/N V A W Quantity
CH-10 1.70 191 325 1600°C Add

Please, enter a numeric value

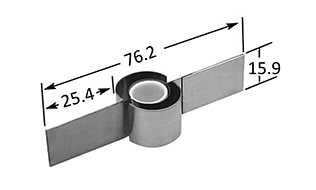

CH-11 Heaters

CH-11 Heaters

Use with C1 and C9 crucibles (OD 1/2" x H 1/2")

Vertical leads

P/N V A W Quantity
CH-11 1.70 191 325 1600°C Add

Please, enter a numeric value

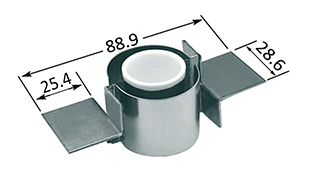

CH-12 Heaters

CH-12 Heaters

Use with C5 crucible (OD 1" x H 1")

Horizontal leads

P/N V A W Quantity
CH-12 2.19 339 742 1600°C Add

Please, enter a numeric value

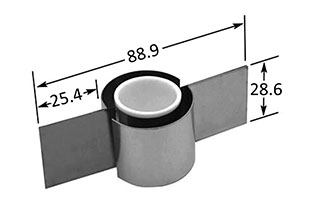

CH-13 Heaters

CH-13 Heaters

Use with C5 crucible (OD 1" x H 1")

Vertical leads

P/N V A W Quantity
CH-13 2.19 339 742 1600°C Add

Please, enter a numeric value

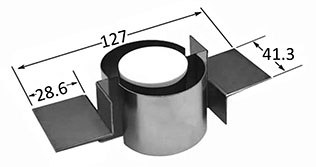

CH-14 Heaters

CH-14 Heaters

Use with C6 crucible (OD 1.5" x H 1.5 ")

Horizontal leads

P/N V A W Quantity
CH-14 3.82 525 2006 1600°C Add

Please, enter a numeric value

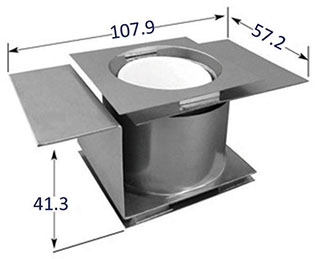

CH-6 Heaters

CH-6 Heaters

Use with C6 crucible (OD 1.5" x H 1.5 ")

P/N V A W Quantity
CH-6 1.9 395 751 1600°C Add

Please, enter a numeric value

ME-19 Heaters

ME-19 Heaters

Use with C1 and C9 crucibles (OD 1/2" x H 1/2")

P/N V A W Quantity
ME-19 1.26 257 324 1600°C Add

Please, enter a numeric value

ME-20 Heaters

ME-20 Heaters

Use with C10 crucible  (OD 1/4" x H 1/2")

P/N V A W Quantity
ME-20 1.16 169 196 1600°C Add

Please, enter a numeric value

Can not find the desired product? Contact us
