Baskets

Tungsten evaporation baskets offer an effective method of reaching high temperatures with low current.
The benefits of using tungsten baskets as an evaporation source for your deposition process include ease of use, multi-directional coatings and low power requirements.

Custom fabrication, to meet your specific process needs, is available upon request. All dimensions are in mm.

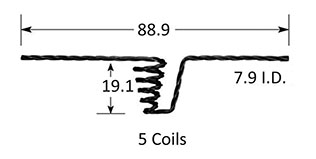

B1 Baskets

P/N	V	A	W	T°	Quantity
B1-.040W	3.47	34	118	1800°C	Add
B1-3X.025W	4.22	43	181	1800°C	Add
B1-3X.030W	3.69	53	196	1800°C	Add

Please, enter a numeric value

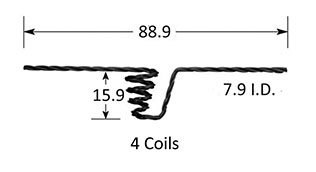

B2 Baskets

P/N	V	A	W	T°	Quantity
B2-.040W	3.04	36	109	1800°C	Add
B2-3X.025W	3.50	44	154	1800°C	Add
B2-3X.030W	3.00	54	162	1800°C	Add

Please, enter a numeric value

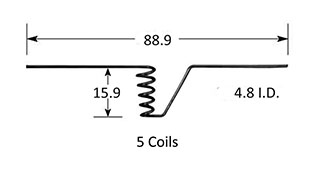

B3 Baskets

P/N	V	A	W	T°	Quantity
B3-.040W	5.40	33	178	1800°C	Add
B3-3X.025W	3.51	42	147	1800°C	Add

Please, enter a numeric value

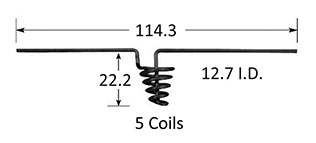

B4 Baskets

P/N	V	A	W	T°	Quantity
B4-.060W	4.02	59	237	1800°C	Add
B4-3X.030W	5.24	52	272	1800°C	Add

Please, enter a numeric value

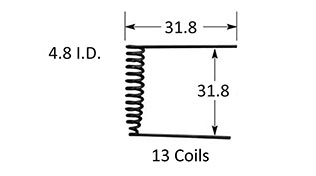

B5 Baskets

P/N	V	A	W	T°	Quantity
B5-.040W	5.50	33	182	1800°C	Add
B5-3X.025W	5.83	37	216	1800°C	Add

Please, enter a numeric value

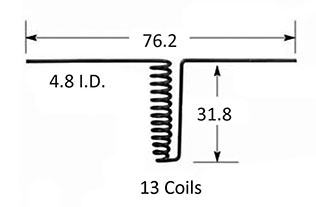

B6 Baskets

P/N	V	A	W	T°	Quantity
B6-.040W	6.62	32	212	1800°C	Add
B6-3X.025W	7.04	39	275	1800°C	Add

Please, enter a numeric value

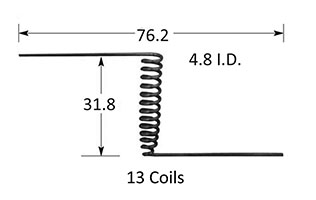

B7 Baskets

P/N	V	A	W	T°	Quantity
B7-.040W	6.22	32	199	1800°C	Add
B7-3X.025W	6.84	38	260	1800°C	Add

Please, enter a numeric value

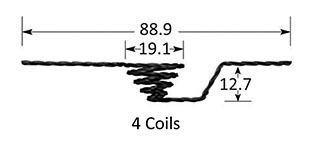

B12A Baskets

P/N	V	A	W	T°	Quantity
B12A-.040W	5.00	37	185	1800°C	Add
B12A-3X.025W	5.31	44	234	1800°C	Add
B12A-3X.030W	4.80	55	264	1800°C	Add

Please, enter a numeric value

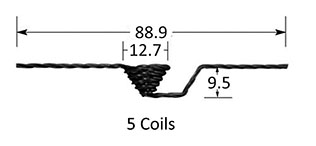

B12B Baskets

P/N	V	A	W	T°	Quantity
B12B-.040W	3.96	33	131	1800°C	Add
B12B-.060W	2.54	99	251	1800°C	Add
B12B-3X.025W	4.56	41	187	1800°C	Add
B12B-3X.030W	3.17	57	181	1800°C	Add

Please, enter a numeric value

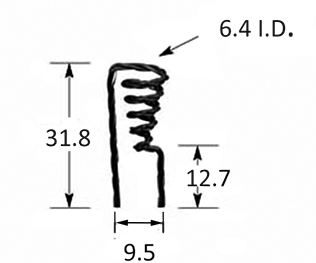

B13 Baskets

P/N	V	A	W	T°	Quantity
B13-.040W	3.22	37	119	1800°C	Add
B13-3X.025W	4.04	45	182	1800°C	Add
B13-3X.030W	45	57	192	1800°C	Add

Please, enter a numeric value

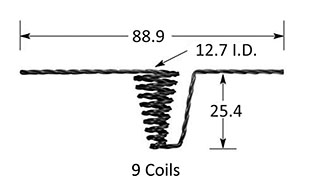

B14 Baskets

P/N	V	A	W	T°	Quantity
B14-.060W	4.83	54	261	1800°C	Add
B14-3X.030W	6.25	50	312	1800°C	Add
B14-4X.030W	5.82	62	361	1800°C	Add

Please, enter a numeric value

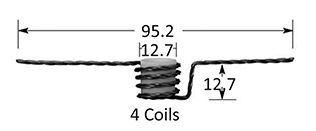

B8A Baskets

Use with C1 crucibles

P/N	V	A	W	T°	Quantity
B8A-3X.025W	6.28	47	249	1800°C	Add
B8A-3X.030W	6.06	55	294	1800°C	Add

Please, enter a numeric value

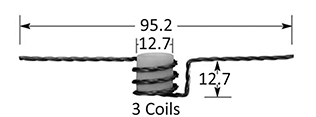

B8B Baskets

Use with C9 crucibles

P/N	V	A	W	T°	Quantity
B8B-3X.025W	5.80	43	249	1800°C	Add
B8B-3X.030W	5.15	57	294	1800°C	Add

Please, enter a numeric value

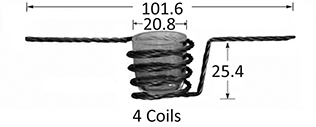

B9 Baskets

Use with C2 crucibles

P/N	V	A	W	T°	Quantity
B9-3X.030W	8.42	57	480	1800°C	Add
B9-3X.040W	7.18	85	610	1800°C	Add
B9-4X.030W	7.76	70	543	1800°C	Add

Please, enter a numeric value

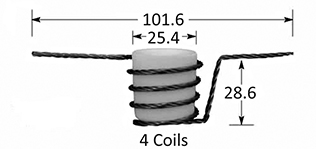

B10 Baskets

Use with C5 crucibles

P/N	V	A	W	T°	Quantity
B10-3X.040W	8.73	85	742	1800°C	Add
B10-4X.030W	9.76	71	693	1800°C	Add

Please, enter a numeric value

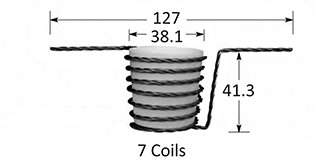

B11 Baskets

Use with C6 crucibles

P/N	V	A	W	T°	Quantity
B11-3X.040W	19.70	84	1655	1800°C	Add

Please, enter a numeric value

RDM-WBAO Alumina coated Baskets

**Dimensions**
P/N	Ø wire (mm)	Ø_int A (mm)	Depth (mm)	B (mm)	C (mm)
RDM-WBAO-1	0.51	3.81	5.7	101.6	9.5
RDM-WBAO-2	1.02	9.53	8.9	101.6	12.7
RDM-WBAO-3	1.02	10.67	10.8	101.6	14.6
RDM-WBAO-4	1.02	20.07	18.4	101.6	22.2
RDM-WBAO-5	1.27	12.7	19.7	101.6	23.5
RDM-WBAO-6	1.52	22.9	24.8	101.6	28.6

P/N	V	A	W	T°	Quantity
RDM-WBAO-1	5.7	11	63	1475°C	Add
RDM-WBAO-2	6.2	40	248	1475°C	Add
RDM-WBAO-3	6.9	39	272	1475°C	Add
RDM-WBAO-4	13	33	429	1475°C	Add
RDM-WBAO-5	7	50	450	1475°C	Add
RDM-WBAO-6	15.8	49	768	1475°C	Add

Please, enter a numeric value

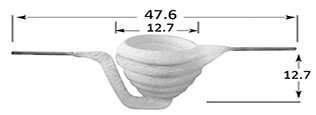

ME17-AO Alumina coated Baskets

P/N	V	A	W	T°	Quantity
ME17-.030W-AO	4.44	18	80	1200°C	Add

Please, enter a numeric value

Can not find the desired product? Contact us
