We offer 3 types of vacuum angle valves, on KF flanges with bellows

  • M: manual
  • P : pneumatic
  • E : electromagnetic

Materials : SS 304 / Viton O'ring. Aluminum valve on request.

Features

Pressure min. / max.: 1x10-8 mbar to 1.2 bar
Differential pressure before opening :<1.2 bar
Leak rate: <1.3x10-9 mbar.l.s-1
Number of cylcle before maintenance : 200 000
Bakeout temperature: <150°C

DN A B (M) B (P) B (E)
Dimensions (mm)
16 KF 40 102 110.5 177.5
25 KF 50 119.4 119 183
40 KF 65 150.5 159 220.5
50 KF 70 170.5 178.5 251.5
Show more
Vacuum

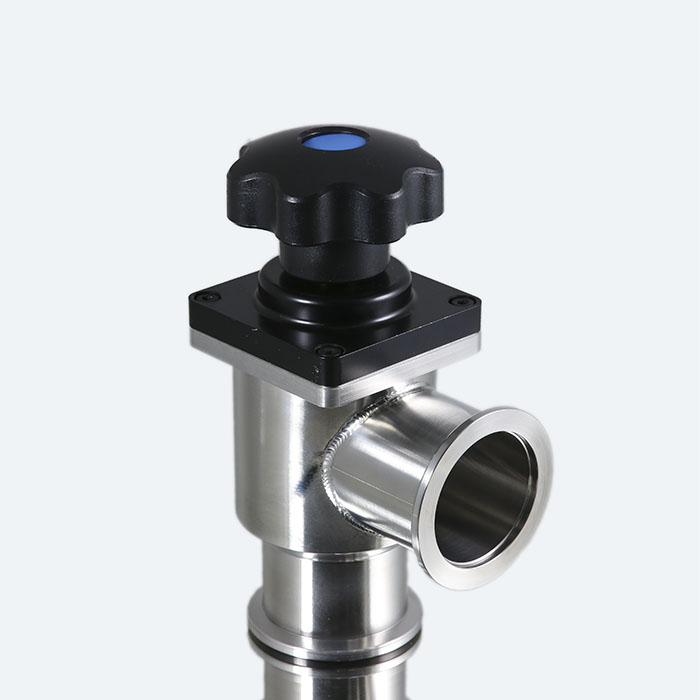

KF angle valve manually (M)

Vacuum

KF angle valve pneumatically (P)

Vacuum

Electromagnetic valve (E)
