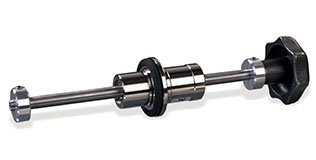

Push Pull Rotary/Linear Feedthrough

Push Pull Rotary/Linear Feedthrough



Common specifications:

  • Tightness by elastomer seals: two Viton® shaft seals
  • Direct push/pull and rotary actuation
  • With locking ring and optional anti-rotation device
  • Leak rate (static) : 1x10-9 mbar.L.s-1
  • ISO-KF mountuing flanges

Operating conditions:

  • Pressure range (abs.): from 1x10-8 mbar up to 1 bar
  • Operating temperature: 50°C
  • Bakeout tempeature : 110°C
  • Materials exposed to process media: inox 304, Aluminium 6063

Spécifications:

DN KF16 KF25 KF40
Stroke (mm) 50 100 150
Shaft connection M3 / Ø 5mm M4 / Ø 8mm M6 / Ø 12mm
Radial force at max. travel (N) 10 15 30
Torsion torque (N.m) 2 8 20
Weight (kg) 0.1 0.2 0.3



P/N DN Quantity
RLMF-KF-16 KF 16 Add
RLMF-KF-25 KF 25 Add
RLMF-KF-40 KF 40 Add
