Our products > Vacuum > Viewports > ISO viewports

ISO viewports

Neyco manufactures a range of UHV viewports in ISO flange styles including a variety of coatings to enhance performance.

Materials include:

  • Kodial (borosilicate glass)
  • Fused Silica
  • Quartz natural
  • Sapphire
  • Barium Fluoride BaF2
  • Calcium Fluoride CaF2
  • Magnesium Fluoride MgF2
  • Zinc Selenide ZnSe
  • Zinc Sulfide Cleartran

Other informations (transmission curve, materials, ...) are available in our pdf file (in the bottom of the page).

Kodial

P/N DN C Quantity
ISO63VPZ 63 ISO K Add
ISO100VPZ 100 ISO K Add
ISO160VPZ 160 ISO K Add
ISO200VPZ 200 ISO K Add
ISO250VPZ 250 ISO K Add

Please, enter a numeric value

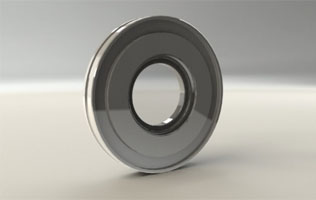

ISO K zero length VIEWPORT

ISO K zero length VIEWPORT
DN A D1 D2 C (window thickness)

Dimensions (mm)


63 ISO K 12 95 38 depending on the material
100 ISO K 12 130 63
160 ISO K 12 180 89
200 ISO K 12 240 136
250 ISO K 12 290 136

Thickness C of the window, depending on each material: see below

Fused silica

P/N DN C Quantity
ISO63QVPZ 63 ISO K 3.5 Add
ISO100QVPZ 100 ISO K 4.5 Add
ISO160QVPZ 160 ISO K 6 Add

Please, enter a numeric value

Sapphire

P/N DN C Quantity
ISO63SVPZ 63 ISO K 1.5 Add
ISO100SVPZ 100 ISO K 2 Add
ISO160SVPZ 160 ISO K 2.5 Add

Please, enter a numeric value

Quartz natural

P/N DN C Quantity
BISO63VPZNQZ 63 ISO K 3.5 Add
BISO100VPZNQZ 100 ISO K 4.5 Add
BISO160VPZNQZ 160 ISO K 6 Add

Please, enter a numeric value

BaF2

P/N DN C Quantity
BISOVPZBaF2 63 ISO K 5 Add
BISO100VPZBaF2 100 ISO K 7 Add

Please, enter a numeric value

CaF2

P/N DN C Quantity
BISO63VPZCaF2 63 ISO K 3.5 Add
BISO100VPZCaF2 100 ISO K 5 Add

Please, enter a numeric value

MgF2

P/N DN C Quantity
BISO63VPZMgF2 63 ISO K 4 Add
BISO100VPZMgF2 100 ISO K 5 Add
BISO160VPZMgF2 160 ISO K 6.5 Add

Please, enter a numeric value

ZnSe

P/N DN C Quantity
BISO63VPZZnSe 63 ISO K 3.75 Add
BISO100VPZZnSe 100 ISO K 5 Add
BISO160VPZZnSe 160 ISO K 6.5 Add

Please, enter a numeric value

ISO F sight glass VIEWPORT

ISO F sight glass VIEWPORT ISO F sight glass VIEWPORT

ISO F viewport with vacuum side protection glass (in borosilicate).

P/N DN A D1 D2 Quantity
ISO63SGV 63 ISO F 20 130 60 Add
ISO100SGV 100 ISO F 22 165 92 Add
ISO160SGV 160 ISO F 30 225 142 Add

Please, enter a numeric value

Download documentation

Can not find the desired product? Contact us
